Reflow Oven Reflow Soldering Machine Infrared Heater Soldering Machine 110V T962A+ Automatic Reflow Machine 2300W 450mmX370mm Soldering Area for Welding of Circuit Board Components

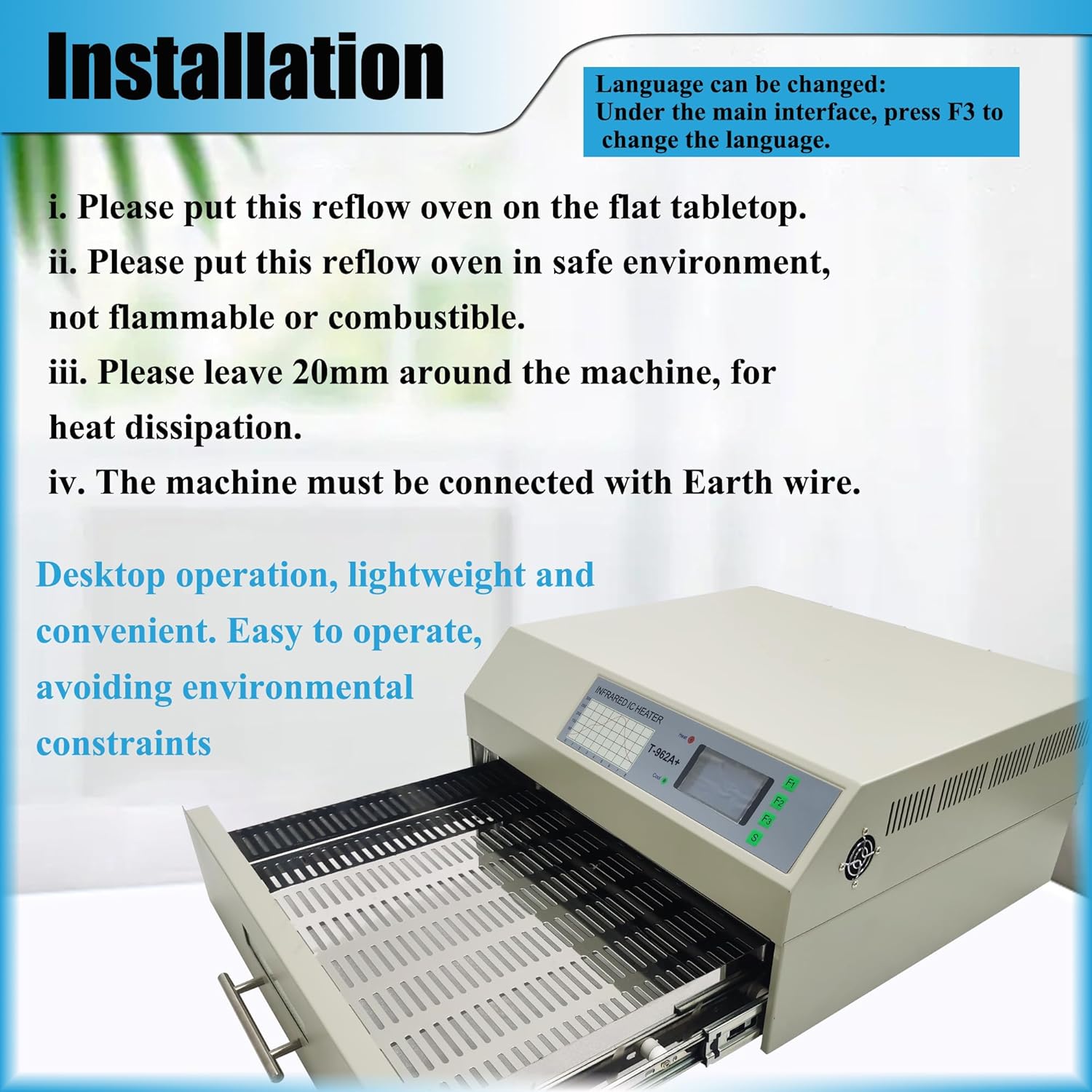

Parameters: Soldering area:450mmX370mm Voltage/Frequency:AC110V/60HZ Power rating:2300W Cycle time:2～16 min Temp rage：Room temp～350℃ Installation i. Please put this reflow oven on the flat tabletop. ii. Please put this reflow oven in safe environment, not flammable or combustible. iii. Please leave 20mm around the machine, for heat dissipation. iv. The machine must be connected with Earth wire. Attention: i.If not use this machine for long time, please unplug the power line plug. ii.The machine should be connected to the exhaust passage within the outdoor ventilation or exhaust recovery. iii. This machine is with strict protective insulation materials, please don't open the machine casually. Please note that the machine is 110V Item Included(022753): 1 Set of Reflow Oven Reflow Soldering Machine T962A+ (110V)

• [Function]This is a micro-processor controlled reflow oven, works automatically by micro-computer control. It can satisfy a soldering a request on a PCB assembly. T962A+ may be used to automatically “re-flow” solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes. In addition, the reflow oven welding machine is with thermostatic timer function
• [High Efficiency]Effective soldering max area of the reflow oven is 450mmX370mm (17.7 x 14.57 inch). Significantly increased usage range. With good performances of large welding area for high efficiency
• [Monitor In Real Time]User interface is implemented by way of T962A+ input keys and an LCD display. The reflow soldering machine is preset with 8 intelligent temperature control curves. If connected to a computer, you can set up to save countless temperature control curves. The curve display operation is more intuitive than the digital display, and the operation status is monitored in real time
• [Micro-processor Controlled]Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermal couple and circulating air. So the automatic reflow machine has characteristics of precise temperature control

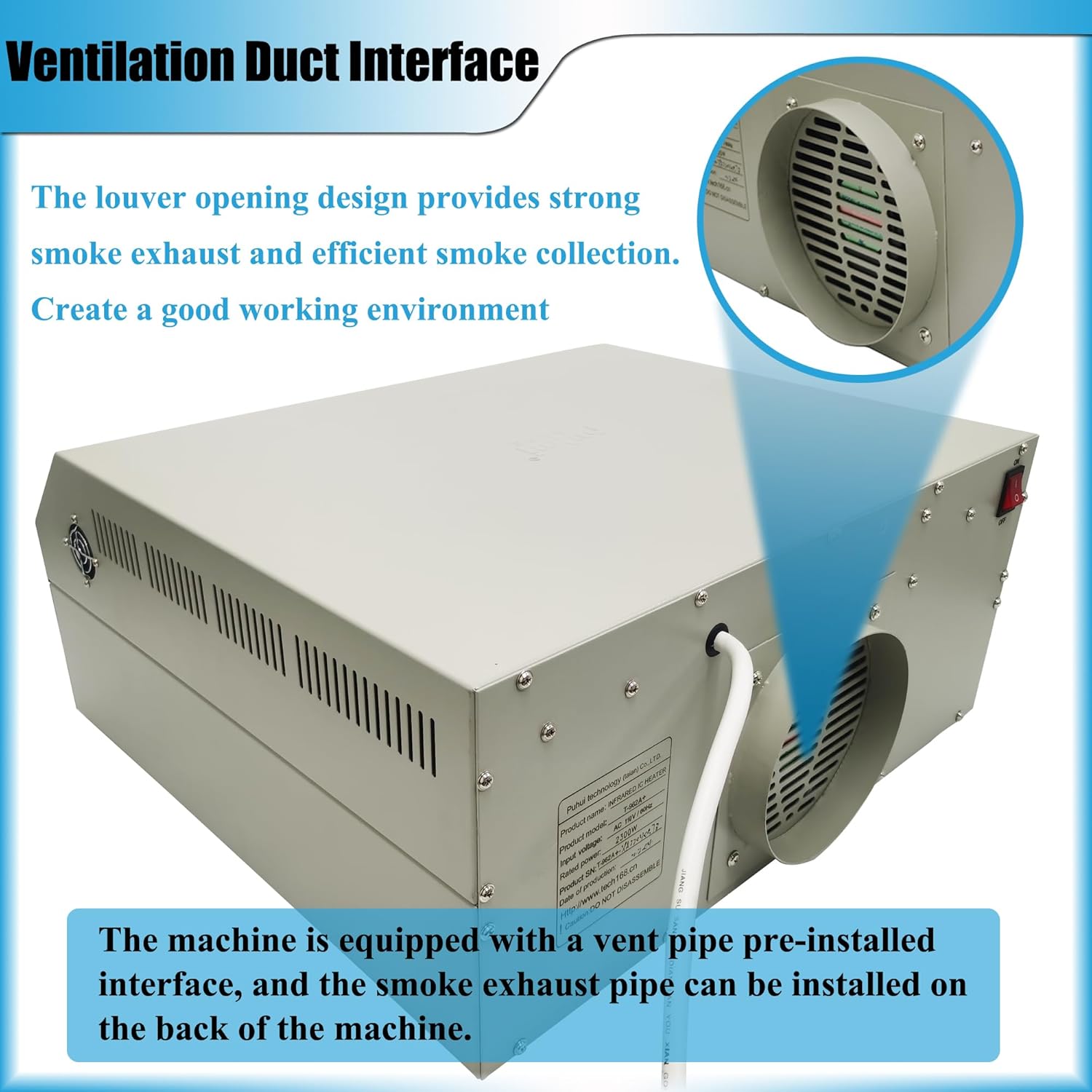

• [Effective Collection of Exhaust Gases]The reflow soldering machine is equipped with a vent pipe pre-installed interface, and the smoke exhaust pipe can be installed on the back of the machine. No leakage of exhaust gases, creating a healthy working environment
